Accessories

Accessories for compressed air and gas systems including: cables, M12 connectors, power adapters, hot tap drills, BSP-NPT adapters, stainless steel fittings.

Showing all 7 results

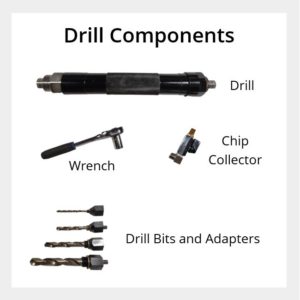

  • Hot Tap DrillHot Tap Drill - Components
    USD $916USD $1,901

    A hot tap drill is a universal tool that allows you to manually install a connection point on pressurized or unpressurised pipes. Note: Hot tapping can be dangerous and should be performed by experienced technicians only.

    Drill Depth
    Up to 200 mm (7.87”)

    Drill bit Diameters
    8.5 mm, 14.5 mm, 19.5 mm, 24.5 mm
    Corresponding ball valve size: 1/4”, 1/2”, 3/4”, 1”

    Drill Bit Material
    Cobalt-containing high-performance high-speed steel HSS / E

    Working Gas Pressure Range
    Up to 20 bar (290 psi)

    Working Temperature
    -50°C to +200°C (-58°F to +392°F)

    Application
    Manufacturing and industrial use
    Temporary or permanent installation

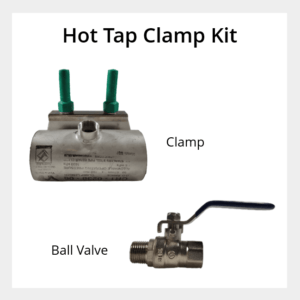

  • Hot Tap ClampHot Tap Clamp - Kit
    USD $359USD $592

    Compressed Air Alliance’s Hot Tap Clamps are idea for use when a take off or socket needs to be added to the pipework while under pressure. Each set comes with a clamp and a ball valve. The clamps are easy to install around the pipe and form a tight seal.

    Clamp Sizes
    To suit pipe ODs from 45 mm (1.8”) to 240 mm (9.4”)

    Ball Valve Size
    1/2” valve or 3/4” valve

    Working Gas Pressure Range
    Up to 1.6 MPa (16 bar, 232 psi)

    Working Temperature
    0°C to 60°C (+32°F to +140°F)

    Clamp Material
    Clamp shell, nuts and washers are made from 316 stainless steel
    Gasket is made from Nitrile rubber

    Application
    Manufacturing and industrial use
    Temporary or permanent installation

  • Protective enclosure for thermal mass and pitot tube flow metersFlow Meter Protection - Highlights
    USD $176

    Transparent flow meter enclosure, suitable for use with Compressed Air Alliance Flow meters. Protect the flow meter head from water, dust and other damage. Quick installation. Easy to disassemble.

    Material: Transparent polycarbonate shell

    IP Rating: IP66

    Ambient Temperature Range: -20°C to +80°C (-4°F to +176°F)

  • 24vDC Power Supply with M12 connectorInternational plug types
    USD $74

    24vDC Power Pack with M12 connector for use with Compressed Air Alliance’s dew point, flow, pressure and temperature sensors

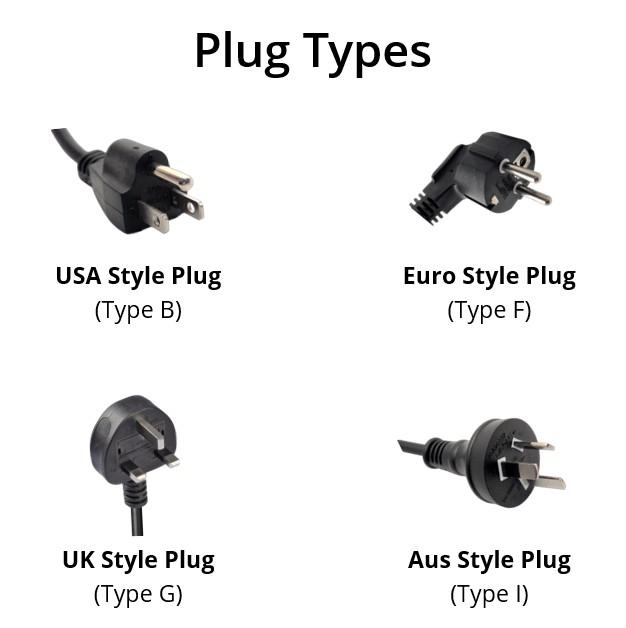

    • Interchangeable plugs – Australia, UK, Europe and USA
    • 24vDC output – M12, 5 pin female connector
    • 100-240vAC input (50/60 Hz)
    • 50W
    • 2.1 Amp
    • 1.7m cable length

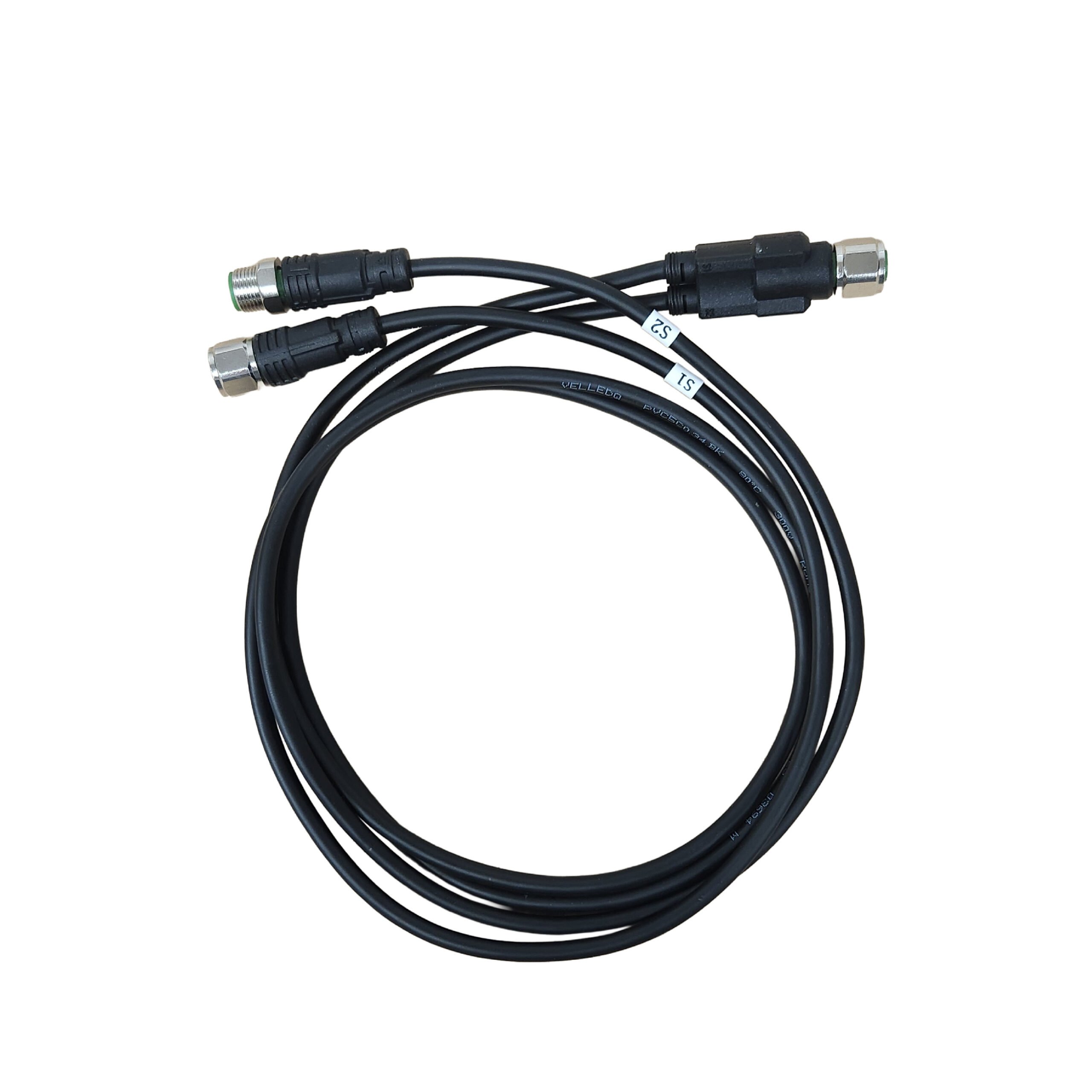

  • Cables for 24vDC power, 4-20mA signals and Modbus RS485 communicationM12 and M8 pins
    USD $21USD $42

    5 wire sensor / instrument / data cables. Perfect for connecting pneumatic sensors to 24vDC power, Modbus output, 4-20mA output, displays, SCADA systems and more.

    These cables can be used with Compressed Air Alliance’s: Data Acquisition System, Dew Point Sensors, Flow Meter, Pressure Sensors, Power Meters and Temperature Sensors.

    Extra M12 connectors and data cables are available on the Accessories page

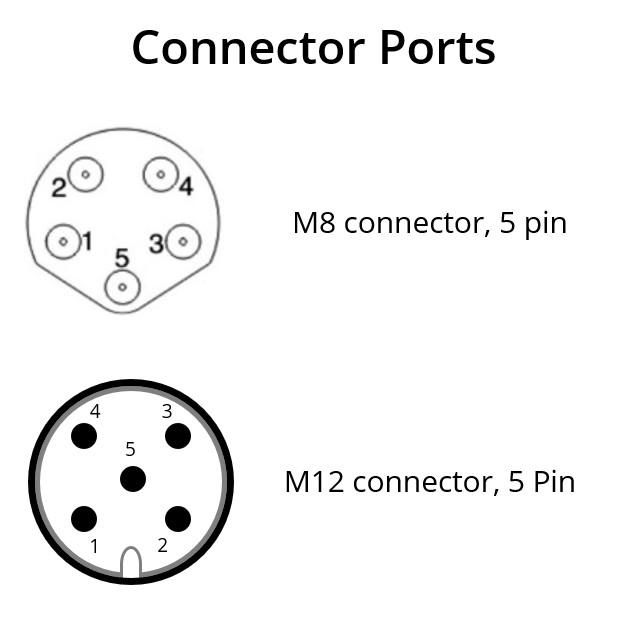

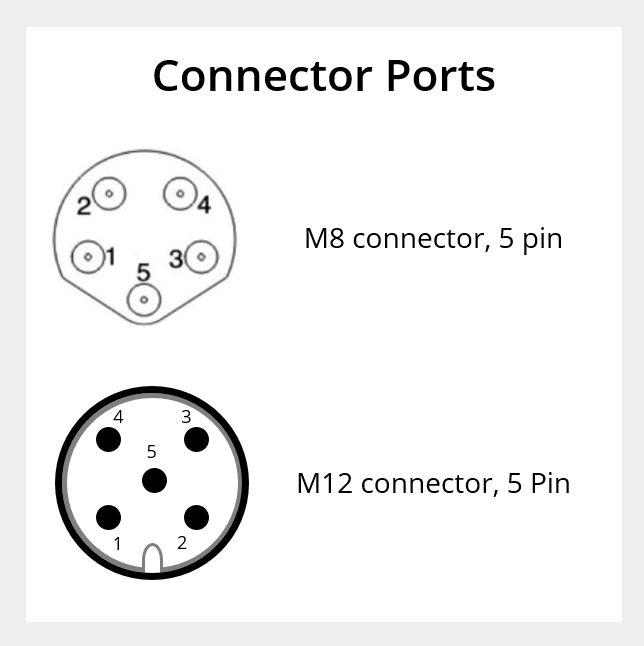

  • M12 ConnectorsM8 and M12 connector Ports
    USD $15USD $42

    M12 connectors for compressed air (pneumatic) systems. Straight, 5 Pin, plastic connector. IP67.

    Perfect for connecting sensors to Modbus or 4-20mA cables and 24vDC power.

    The Y and Tee connectors are ideally suited to daisy chaining sensors together.



  • 1/2" BSP to NPT adapter
    USD $21

    Stainless Steel (304SS) 1/2″ BSP to NPT adapter.

    1/2″ BSP female to 1/2″ NPT male thread.

    Perfect for use with Compressed Air Alliance’s flow meters.
