Dew Point Sensor

•

  Select options

  Dew Point Sensor

  Dew Point Sensor – H Series

  USD $2,028 – USD $2,840

  Handheld / portable dew point sensor for compressed air and gases. Ideal for service technicians, auditors and temporary measurements.

  Pressure Dew Point (PDP) Range
  -60°C to +60°C (-76°F to +140°F) or
  -110°C to +20°C (-166°F to +68°F)

  Gas Pressure Range
  up to 17 bar (246 psi)

  Dryer Types
  Desiccant, Membrane, drum, refrigerant or hybrid dryers


  Gas Quality
  Minimal contaminates (ie minimal oil, particles or water vapour)

  Accuracy
  Dew point measurements
  • -80°C to +20°C: ±2%
  • -100°C to -80°C: ±3%
  Temperature measurements: ±0.5 °C
  Pressure @ 23°C: ±0.3% FS

  Measure
  Pressure dew point (PDP), Relative Humidity, Temperature and Pressure.
  View dew point purity class according to ISO 8573.

  Display
  4.3” IPS wide viewing angle, LCD with capacitive touch

  Data Logging
  1.5 G storage, 200,000,000 values
  Export data as a .csv file
  Data output via Type C USB

  Power requirement
  Rechargeable lithium battery – 16 hours operating time, 2.5 hours charging time

  Application
  Manufacturing and industrial use
  Temporary or measurement

  Select options
•

  Select options

  Dew Point Sensor

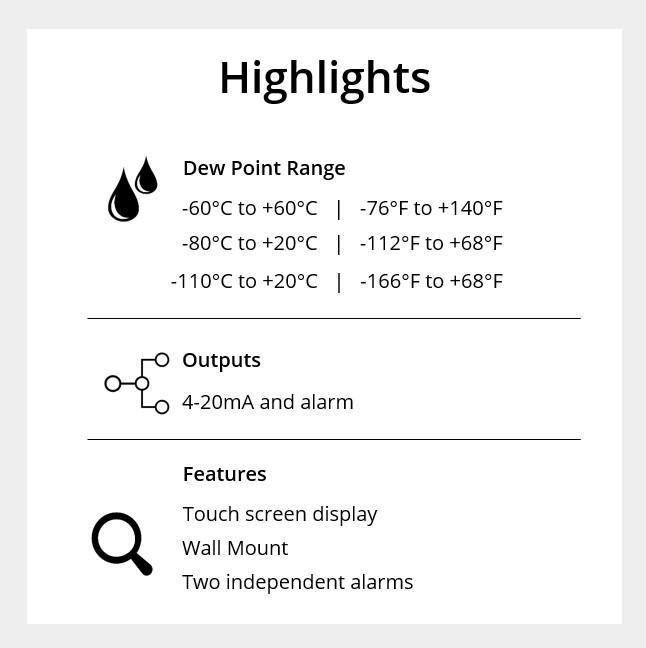

  Dew Point Monitor – W Series

  USD $1,021 – USD $2,411

  Wall mount dew point monitor with touch screen display and alarm. Measure pressure dew point (PDP), relative humidity, temperature and pressure (if using the optional integrated pressure sensor).

  Pressure Dew Point (PDP) Range
  -60°C to +60°C (-76°F to +140°F)
  -80°C to +20°C (-112°F to +68°C)
  -110°C to +20°C (-166°F to +68°F)

  Alarm
  Two independent alarms:
  – Built-in alarm – red/green light and siren
  – External alarm

  Gas Pressure Range
  up to 17 bar (246 psi)

  Accuracy
  Dew point: up to ±2%
  Temperature: ±0.5 °C
  Pressure @ 23°C (optional): ±0.3% FS

  Display
  LCD Touch screen

  Output
  4-20mA and alarm

  Power Requirement
  Standard wall socket, 110-240vAC

  Application
  Manufacturing and industrial use
  Temporary or permanent installation
  Refrigerant, desiccant, drum or membrane dryers

  Select options
•

  Select options

  Dew Point Sensor

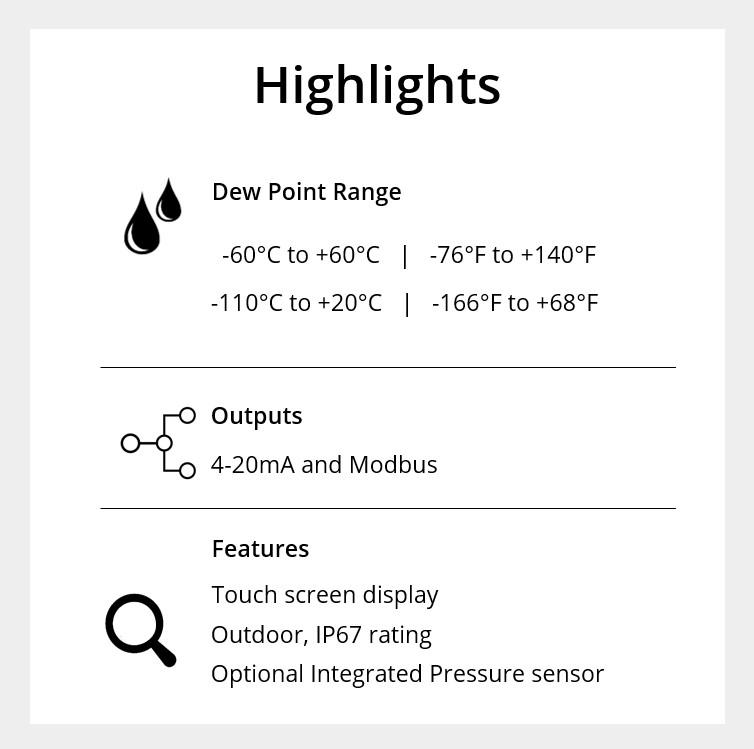

  Dew Point Sensor – E Series

  USD $1,778 – USD $2,195

  The outdoor dew point sensor has an IP67 rating. Suitable for compressed air and gases.

  Pressure Dew Point (PDP) Range
  -60°C to +60°C (-76°F to +140°F) or
  -110°C to +20°C (-166°F to +68°F)

  Gas Pressure Range
  up to 50 bar (725 psi)

  Dryer Types
  Desiccant, Membrane, drum, refrigerant or hybrid dryers


  Gas Quality
  Minimal contaminates (ie minimal oil, particles or water vapour)

  Accuracy
  Dew point measurements
  • -80°C to +20°C: ±2%
  • -100°C to -80°C: ±3%
  Temperature measurements: ±0.5 °C
  Pressure @ 23°C (optional): ±0.3% FS

  Measure
  Pressure dew point (PDP), Relative Humidity, and Temperature
  Optional – Pressure measurement (requires integrated pressure sensor)

  Display
  2.0” IPS LCD display with an ultra-wide viewing angle

  Output
  Modbus (RS485) and 4-20mA

  Power requirement
  16 to 30V DC

  Alarm
  Alarm relay available

  Sensor Technology
  Alumina-Oxide or polymer sensor (depending on model)

  Application
  Manufacturing and industrial use
  Temporary or permanent measurement

  Select options
•

  Select options

  A Series

  Dew Point Sensor – A Series

  USD $957 – USD $1,674

  Dew point transmitter with Alumina-Oxide sensor for compressed air and gases.

  Pressure Dew Point (PDP) Range
  -80°C to +20°C (-112°F to +68°F)
  -100°C to +20°C (-148°F to +68°F)

  Gas Pressure Range
  up to 50 bar (725 psi)

  Dryer Types
  Desiccant, Membrane, drum or hybrid dryers


  Gas Quality
  Minimal contaminates (ie minimal oil, particles or water vapour)

  Accuracy
  Dew point measurements
  • -80°C to +20°C: ±2%
  • -100°C to -80°C: ±3%
  Temperature measurements: ±0.5 °C
  Pressure @ 23°C (optional): ±0.3% FS

  Measure
  Pressure dew point (PDP), Relative Humidity and Temperature
  Optional – Pressure measurement (requires integrated pressure sensor).

  Display
  Optional 1.5” LCD Touch screen

  Output
  Modbus (RS485) and 4-20mA

  Power requirement
  10 to 30 VDC, max 50 mA @ 24 VDC

  Alarm
  Alarm relay is optional – requires the touch screen display

  Sensor Technology
  Aluminium-Oxide sensor

  Application
  Manufacturing and industrial use
  Temporary or permanent installation

  Accessories
  Extra M12 connectors and data cables are available on the Accessories page

  Select options
•

  Select options

  Dew Point Sensor

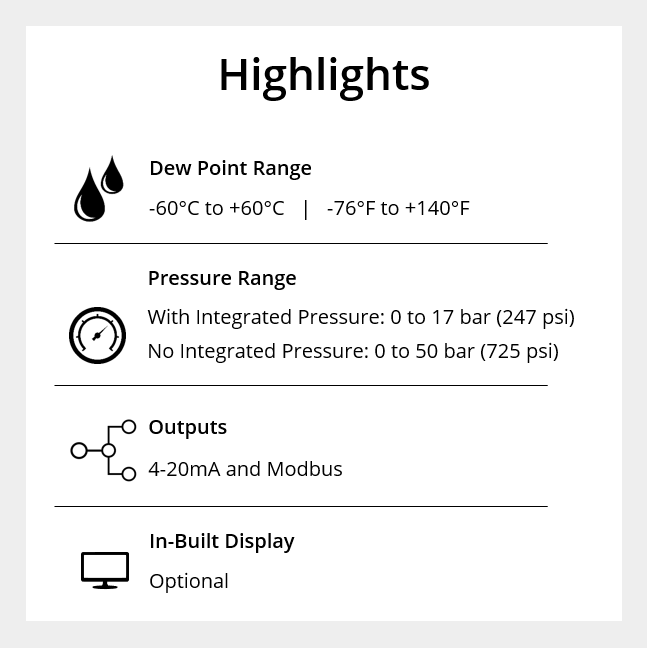

  Dew Point Sensor – K Series

  USD $619 – USD $1,283

  Dew point sensor with polymer technology for compressed air and gases.

  Pressure Dew Point (PDP) Range
  -60°C to +60°C (-76°F to +140°F)

  Gas Pressure Range
  up to 50 bar (725 psi)

  Dryer Types
  Refrigerant, Membrane, Drum or Hybrid dryers


  Gas Quality
  Some contaminates (ie some oil, particles or water vapour)

  Accuracy
  Dew point measurements: ±2%
  Temperature measurements: ±0.5 °C
  Pressure @ 23°C (optional): ±0.3% FS

  Measure
  Pressure dew point (PDP), Relative Humidity and Temperature
  Optional – Pressure measurement (requires integrated pressure sensor).

  Display
  Optional 1.5” LCD Touch screen

  Output
  Modbus (RS485) and 4-20mA

  Power requirement
  10 to 30 VDC, max 50 mA @ 24 V

  Alarm
  Alarm relay is optional – requires the touch screen display

  Sensor Technology
  Polymer sensor

  Application
  Manufacturing and industrial use
  Temporary or permanent installation

  Accessories
  Extra M12 connectors and data cables are available on the Accessories page

  Select options
•

  Select options

  Dew Point Sensor

  Dew Point Sensor – Mini Series

  USD $548 – USD $586

  This economical, mini dew point sensor is suited to small spaces. Measure pressure dew point (PDP), relative humidity, temperature.

  Pressure Dew Point (PDP) Range
  -60°C to +60°C (-76°F to +140°F)

  Gas Pressure Range
  up to 50 bar (725 psi)

  Dryer Types
  Refrigerant, Drum or Membrane Dryers


  Gas Quality
  Some contamination (ie oil, particles or water vapour)

  Accuracy
  Dew point measurements: ±2%
  Temperature measurements: ±0.5 °C

  Measure
  Pressure dew point (PDP), Relative Humidity and Temperature

  Display
  No display

  Output
  Modbus (RS485) and 4-20mA

  Power requirement
  10 to 30 VDC, max 50 mA @ 24 V

  Alarm
  No alarm or alarm relay

  Sensor Technology
  Polymer sensor

  Application
  Manufacturing and industrial use
  Temporary or permanent installation

  Accessories
  Extra M12 connectors and data cables are available on the Accessories page

  Select options
•

  Add to cart

  Dew Point Sensor

  Power Pack

  USD $63

  24vDC Power Supply with M12 connector for use with Compressed Air Alliance’s dew point, flow, pressure and temperature sensors

  • Interchangeable plugs – Australia, UK, Europe and USA
  • 24vDC output – M12, 5 pin female connector
  • 100-240vDC input
  • 50W
  • 2.1 Amp

  Add to cart
•

  Select options

  Accessories

  Cables

  USD $18 – USD $39

  5 wire sensor / instrument / data cables. Perfect for connecting pneumatic sensors to 24vDC power, Modbus output, 4-20mA output, displays, SCADA systems and more.

  These cables can be used with Compressed Air Alliance’s: Data Acquisition System, Dew Point Sensors, Flow Meter, Pressure Sensors, Power Meters and Temperature Sensors.

  Extra M12 connectors and data cables are available on the Accessories page
