Condensate drains

Showing all 2 results

  • USD $668

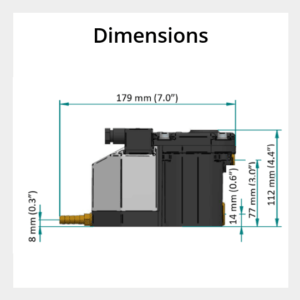

    The Jorc Kaptiv-CS is a standard condensate drain for larger compressed air systems.

    Drain Type
    Electronic zero air loss drain

    Compressed air system size
    up to 100 m3/min (3500 CFM)

    Pressure range
    0 to 16 bar (232 psi)

    Alarm Feature
    Yes

    Level Indicator
    Yes

    Power Requirement
    24vAC, 24vDC or 230vAC

    Install on:
    Compressors, Dryers, Filters, Receivers, and Drip legs
    Oil Free or Oil Lubricated systems

    Application
    Manufacturing or industrial Use
    Permanent installation

  • USD $410

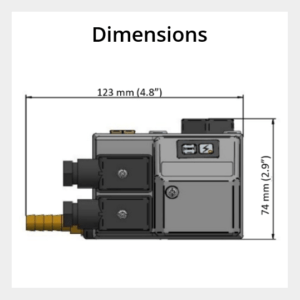

    The Jorc Kaptiv-MD-A is an exceptionally versatile and compact condensate drain.

    Drain Type
    Electronic zero air loss drain

    Compressed air system size
    up to 10 m3/min (350 CFM)

    Pressure range
    0 to 16 bar (232 psi)

    Alarm Feature
    Yes

    Level Indicator
    No

    Power Requirement
    24vAC, 24vDC or 230vAC

    Install on:
    Compressors, Dryers, Filters, Receivers, and Drip legs
    Oil Free or Oil Lubricated systems

    Application
    Manufacturing or industrial Use
    Permanent installation
